Concave Pushbutton - Clear RGB Illuminated
Average rating:
| Read all reviewsSKU GL-PB-CLEAR-RGB
Price $6.95
- More Details
- Reviews
- Related Items:
Concave Pushbutton - Clear RGB Illuminated

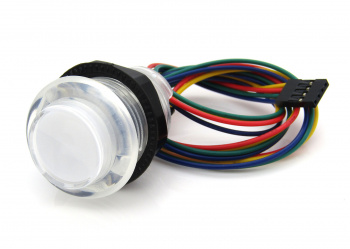

This RGB illuminated button has a Concave top with a clear plunger and bezel. It plugs directly into the Ultimarc PacLED64 and Ultimate I/O boards to control the LED color. This button is not provided by Ultimarc, please do not contact them for support.Button Specs
- Build in gold plated leaf switch has 2.8mm/.110in connectors
- 500mm LED wire harness attached with 4 pin connector
- Easily connects to Ultimarc's PacLED64 or I-PAC Ultimate I/O boards
- Fits wood or metal control panels
- Push button mounts in 1-1/8" hole
- Concave Plunger Design
- 5v DC only, not for use with 12v as the PacLED64 or Ultimate will overheat
- Pinout: Yellow +5v, Red Neg, Green Neg, Blue Neg
- NOTE: The LEDs do not have current-limiting resistors so they must be connected to the PacLED64 or Ultimate boards which have current-controlled outputs.
- Ultimarc PacLED64 LED Controller Board or Ultimarc I-PAC Ultimate I/O Controller Board to control the LED.
- Our 2ft Dupont 4 Pin Male to Female Extension can be used to extend the distance from the control board.
- Logo Caps for Goldleaf Concave Pushbuttons - Start 1, Start 2, Coins
- Logo Caps for Goldleaf Concave Pushbuttons - Start 3, Start 4, Coins
- Logo Caps for Goldleaf Concave Pushbuttons - Play, Pause, Stop, Volume
Concave Pushbutton - Clear RGB Illuminated Reviews
Read all reviews
Excellent Product
12/28/2022
The led and button function of these are working very well with the Ultimarc Ultimate IO Board. One out of 24 had a problem. The one that did would stick on. I fixed it by disassembling it and filing the small plunger such that is did not stick.
They were able to be mounted on 3/4" boards by inverting the nut that secures them in place.
I was able to print inserts using clear plastic for custom button graphics.
Amazing quality
12/08/2024
These are great. They work perfect and light up nice and even over all. Will definably buy some more.
Featured positive reviews:
The led and button function of these are working very well with the Ultimarc Ultimate IO Board. One out of 24 had a problem. The one that did would stick on. I fixed it by disassembling it and filing the small plunger such that is did not stick.
They were able to be mounted on 3/4" boards by inverting the nut that secures them in place.
I was able to print inserts using clear plastic for custom button graphics.
These are great. They work perfect and light up nice and even over all. Will definably buy some more.
