Ultimarc I-PAC Ultimate I/O Controller Board

Average rating:
average rating 100%
| Read all reviews

SKU IPAC-Ultimate
Price $92.00
Qty:
  • More Details
  • Reviews
  • Related Items:

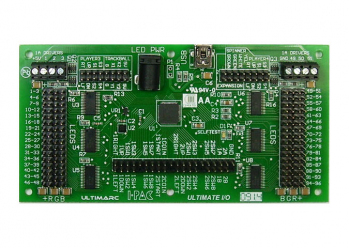

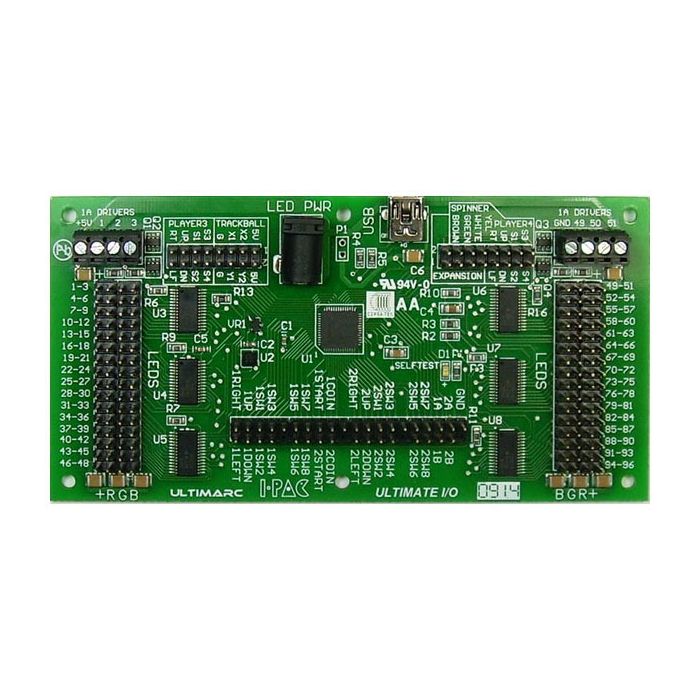

Ultimarc I-PAC Ultimate I/O Controller Board

Working on a MAME or Virtual Pinball machine and want to use 1 board for both your button/joystick inputs AND control your LEDs?  The Ultimate I/O does that! With support for 96 single LED's or 24 RGB LED's this controller has full dimming, flash storage, and can be controlled by third party programs such as LED Blinky and RGB Commander.

Features:
  • 48 inputs each with it's own dedicated microprocessor pin
  • Trackball and spinner interface - when enabled in WinIPAC these use a total of 6 of the available 48 inputs
  • Example configurations include: 2 player with trackball/spinner or 4 player without trackball/spinner
  • All input pins can be assigned to any keyboard key, gamepad button (including hat switch), mouse button or power/volume control
  • 96 LED channels with 256 brightness levels for full RGB color mixing
  • 8 high-current 1 amp drivers
  • Can be used with single-color or RGB LEDs (RGB use 3 channels)
  • Constant current negates the need for resistors for each LED
  • Can be used with LEDs with inbuilt resistors if required
  • Use only 5v DC power, not 12v as the board can overheat. When using 12v LED buttons they will still work on 5v, and will just be dimmer
  • 128-command flash storage for “attract-mode” sequences which run immediately on power-up with no PC present
  • Supplied configuration utility allows customisation and storage of attract-mode LED sequence
  • Supports single-command fades with preset speed on-board. Multiple fades can overlap
  • Comes with power cable for plugging into a PC disk drive power connector, and USB cable
  • Ultimarc UltraLux RGB lights, Ultimarc Classic RGB lights, or Industrias Lorenzo RGB lights simply plug in
  • Extensive software support including test application, Software Development kit for adding support to your own programs, and LedBlinky third-party software
  • 6 X 1 amp MOSFET drivers which are suitable for LED strips and other high-power LED applications

Contains:
  • Ultimarc Board
  • USB Cable
  • 5v Power cable for connection to PC Power Supply.

Optional Addons:
Support & Documentation:
The PacLED64 is made by Ultimarc, all support links below open to their website:

Ultimarc I-PAC Ultimate I/O Controller Board Reviews

Read all reviews

Featured positive reviews:

average rating 100%
Excellent Product 12/28/2022
By William Meier
This board has worked very well with my Goldleaf buttons, spinner, trackball and LEDBlinky. I illuminated my 3" Red Suzo-Happ trackball by mounting an Arcade Renovations U-Trak RGB LED Panel inside of the trackball. The red led is connected to the high current output from this board.
average rating 100%
Excellent Product 12/28/2022
By William Meier
Works well in my cabinet.

Support from t-molding and Ultimarc was great. They both helped me diagnose a trackball board failure.
average rating 100%
Arcade renovations 07/30/2021
By Keith Vance
Great service fast shipping, if you need parts for an arcade this is the place to be.
