Concave Pushbutton - Clear Eclipse RGB Illuminated
Average rating:
| Read all reviewsSKU GL-PB-ECLIPSE-RGB
Price $6.95
- More Details
- Reviews
- Related Items:
Concave Pushbutton - Clear Eclipse RGB Illuminated

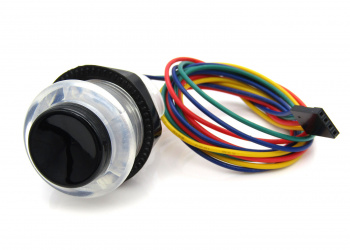

This RGB illuminated button has Black Concave top with a clear bezel for an Eclipse look. It plugs directly into the Ultimarc PacLED64 and Ultimate I/O boards to control the LED color. This button is not provided by Ultimarc, please do not contact them for support.Button Specs
- Build in gold plated leaf switch has 2.8mm/.110in connectors
- 500mm LED wire harness attached with 4 pin connector
- Easily connects to Ultimarc's PacLED64 or I-PAC Ultimate I/O boards
- Fits wood or metal control panels
- Push button mounts in 1-1/8" hole
- Concave Plunger Design
- 5v DC only, not for use with 12v as the PacLED64 or Ultimate will overheat
- Pinout: Yellow +5v, Red Neg, Green Neg, Blue Neg
- NOTE: The LEDs do not have current-limiting resistors so they must be connected to the PacLED64 or Ultimate boards which have current-controlled outputs.
- Ultimarc PacLED64 LED Controller Board or Ultimarc I-PAC Ultimate I/O Controller Board to control the LED.
- Our 2ft Dupont 4 Pin Male to Female Extension can be used to extend the distance from the control board.
Concave Pushbutton - Clear Eclipse RGB Illuminated Reviews
Read all reviews
Excellent Product
12/28/2022
The led and button function of these are working very well with the Ultimarc Ultimate IO Board. One out of 24 had a problem. The one that did would stick on. I fixed it by disassembling it and filing the small plunger such that is did not stick.
They were able to be mounted on 3/4" boards by inverting the nut that secures them in place.
I was able to print inserts using clear plastic for custom button graphics.
Amazing
02/06/2023
I love them, they are so bright and look beautiful in my custom cab. The animations with LEDBLINKY are great with these buttons. Recommended 10 out of 10
Featured positive reviews:
The led and button function of these are working very well with the Ultimarc Ultimate IO Board. One out of 24 had a problem. The one that did would stick on. I fixed it by disassembling it and filing the small plunger such that is did not stick.
They were able to be mounted on 3/4" boards by inverting the nut that secures them in place.
I was able to print inserts using clear plastic for custom button graphics.
I love them, they are so bright and look beautiful in my custom cab. The animations with LEDBLINKY are great with these buttons. Recommended 10 out of 10
