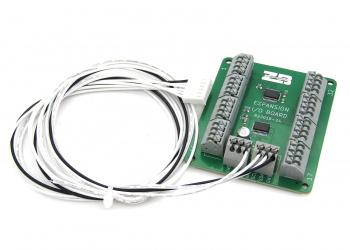

Zebsboards Plunger I/O Expansion Board

** This item is no longer in production - once it sells out we can not get more **


The Plunger Expansion Board expands your ZebsBoards plunger's button inputs to the full 32 button inputs allowed by Windows and also adds 2 4-way DPad (Hat Switch) inputs.

Requires a Zebsboards Digital/Analog Plunger V3 or higher running firmware revision V4R51 or higher.

Detailed Instructions PDF - zebsboards-digital-analog-plunger-io-expansion-board.pdf

Features:

• 32 button inputs
• Unlocks 2x DPad Inputs for joystick usage
• Adds input for an external calibration/keyboard-gamepad selector switch
• Easily connects to all V3 and higher plungers
• Tool Free terminal connectors

Reference / Support Docs:

• Plunger Expansion Board Instructions PDF - zebsboards-digital-analog-plunger-io-expansion-board.pdf
• Plunger v5 Instructions PDF - zebsboards-digital-analog-plunger-v5-instructions.pdf
• Plunger Serial Control Instructions PDF - zebsboards-digital-analog-plunger-serial-control-instructions.pdf
