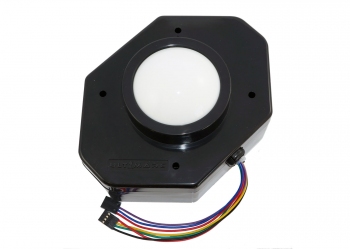

White Ultimarc U-Trak Trackball

*Due to increased product costs, this item is no longer available for coupon discounts*

• 3" Diameter White Ball
• Mounting bolts and expanding screw sleeves (drill 1/4in or 6mm holes) included, to enable easy install with no screws visible from the top
• Optional trim flange included
• Optional USB interface available or connect directly to I-PAC 2
• Use with control panel thickness up to 3/4" (19mm)
• 6 grease-free bearings and 3 stainless-steel shafts for professional durability
• Available in Cue-ball White (this product) Blue, Red, or Pearlescent for multi-color illumination

Box Contains:

• Complete assembled trackball with White ball
• Black trim flange
• 4 expanding screw sleeves
• 4 mounting bolts

Pinout:

• 3-Wire Connector:
  • 5V - Red
  • X1 - Purple
  • X2 - Blue


• 4-Wire Connector:
• 5V - Red
• Y1 - Yellow
• Y2 - Green
• G - Black
