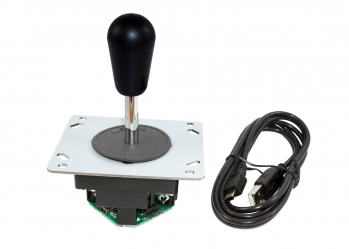

Ultimarc UltraStik 360 Joystick with Black Sanwa Bat/Oval Top


SKU UltraStik-Bat-Black
Price $59.00
Qty:
  • More Details
  • Reviews
  • Related Items:

Ultimarc UltraStik 360 Joystick with Black Sanwa Bat/Oval Top

The UltraStik is is a true analog arcade joystick using advanced sensing technology which uses no contacts nor switches, allowing a perfectly smooth movement in all directions. It can be used in many modes, ranging from simply replacing a micro-switch 4 or 8 way stick to a full analog flight stick with user-defined analog/digital mapping.

Note: We only sell the 9mm diameter shaft and include an M10-1.5 to M6-1.0 thread adapter for the Sanwa top. We do not stock the 12mm diameter joystick that Ultimarc uses for their bat tops.
The following table shows the behavior in each of the two modes:

I/O Port Connected to: USB Data I/O Port Data
I/O Port is used as Output.
USB not connected
I-PAC, J-PAC etc None 4 Direction wires to emulate switches
Emulates 8-way stick
I/O Port is used as Output.
USB is connected
I-PAC, J-PAC etc Fully Mappable Analog/Digital joystick.
Cell matrix mappable to any 8-way direction,
sticky or center, or analog.
4 Direction wires to emulate switches.
Responds according to the defined map
(downloaded via USB).
Any analog cells are treated as center.
I/O Port used as Input Buttons Fully Mappable Analog/Digital joystick
Cell matrix mappable to any 8-way direction,
sticky or center, or analog.
Input from 8 buttons

Note that when using in Output Mode, if you go into Control Panel, Gamepad Devices, the 8 buttons will still be shown there, but they are inoperative.

The connections for the 10-pin header are as below:

Pin Wire Input Mode Output Mode
2 Black COM Connect to COM terminals on all buttons GND. Connect to I-PAC if required
3 Brown Button 1 NO not used
4 Red Button 2 NO Power (5 volts)
5 Orange Button 3 NO Right Digital. Connect to I-PAC if required
6 Yellow Button 4 NO Left Digital. Connect to I-PAC if required
7 Green Button 5 NO Up Digital. Connect to I-PAC if required
8 Blue Button 6 NO Down Digital. Connect to I-PAC if required
9 Violet Button 7 NO Raw analog. Requires special firmware
10 Grey Button 8 NO Raw analog. Requires special firmware
