Sanwa JLX2-TP-8YT Joystick *New*

Sanwa JLX2-TP-8YT Joystick *New*

Arcade Game Joystick Specs:

May 1st, 2025: Product photos are coming once we have this in stock. The JLX2 starts shipping from Japan on May 12th and we'll take photos as soon as we have them.

This is the *NEW* JLX2 joystick by Sanwa, this item is JUST the joystick and the dust washers. No top or harness is included. The new JLX2 product line is the successor to the JLX, which followed the ever popular JLF series and this joystick replaces the JLX-TP-8YT model & JLF-TP-8YT models.

• 100% Sanwa product
• Set to 8-way when shipped
• Rotate the inner circle of the restrictor plate 45deg to change to 4-way
• Sanwa Part #JLX2-TP-8YT

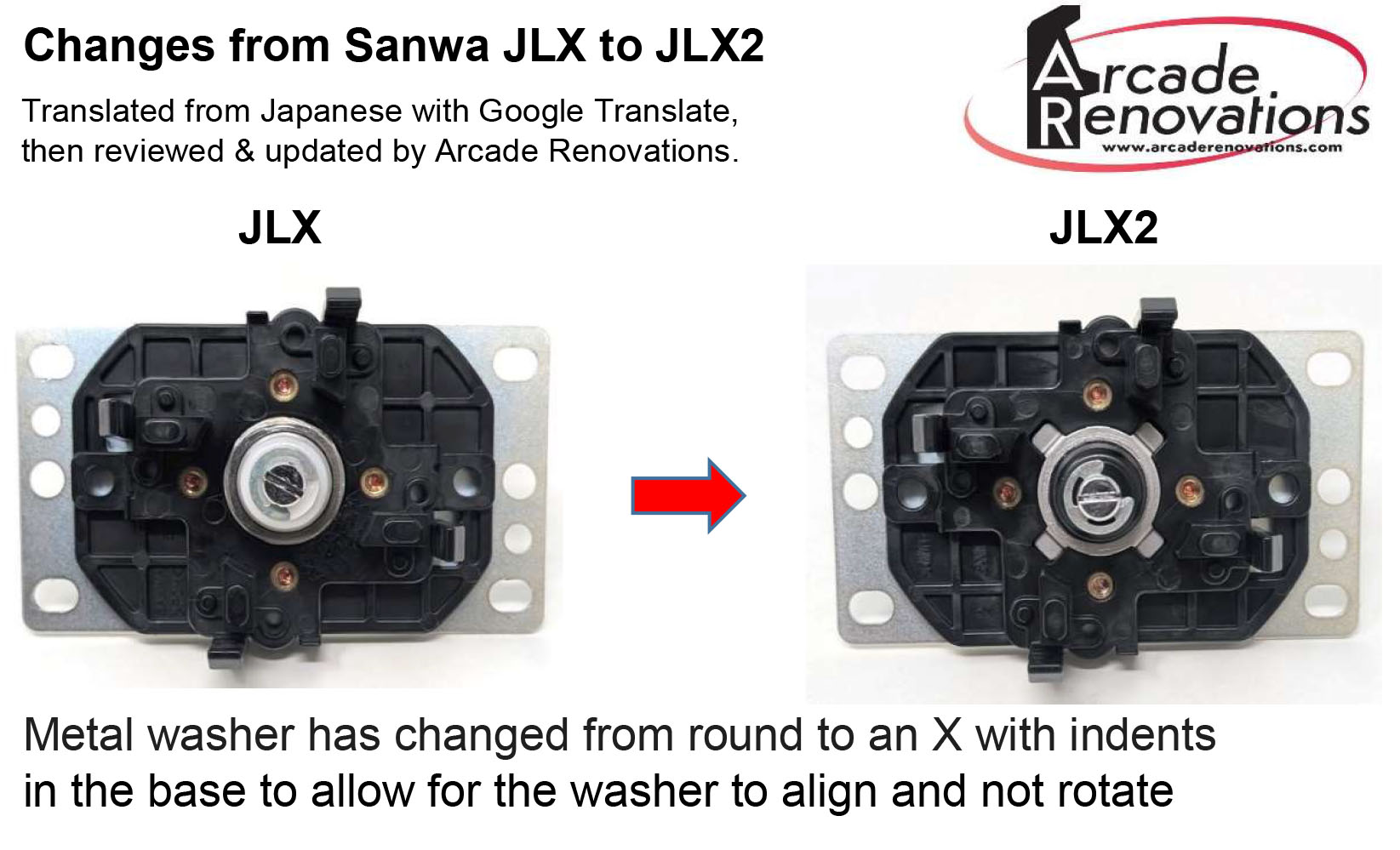

• The metal washer has changed from round to an X with indents in the base to allow for the washer to align and not rotate

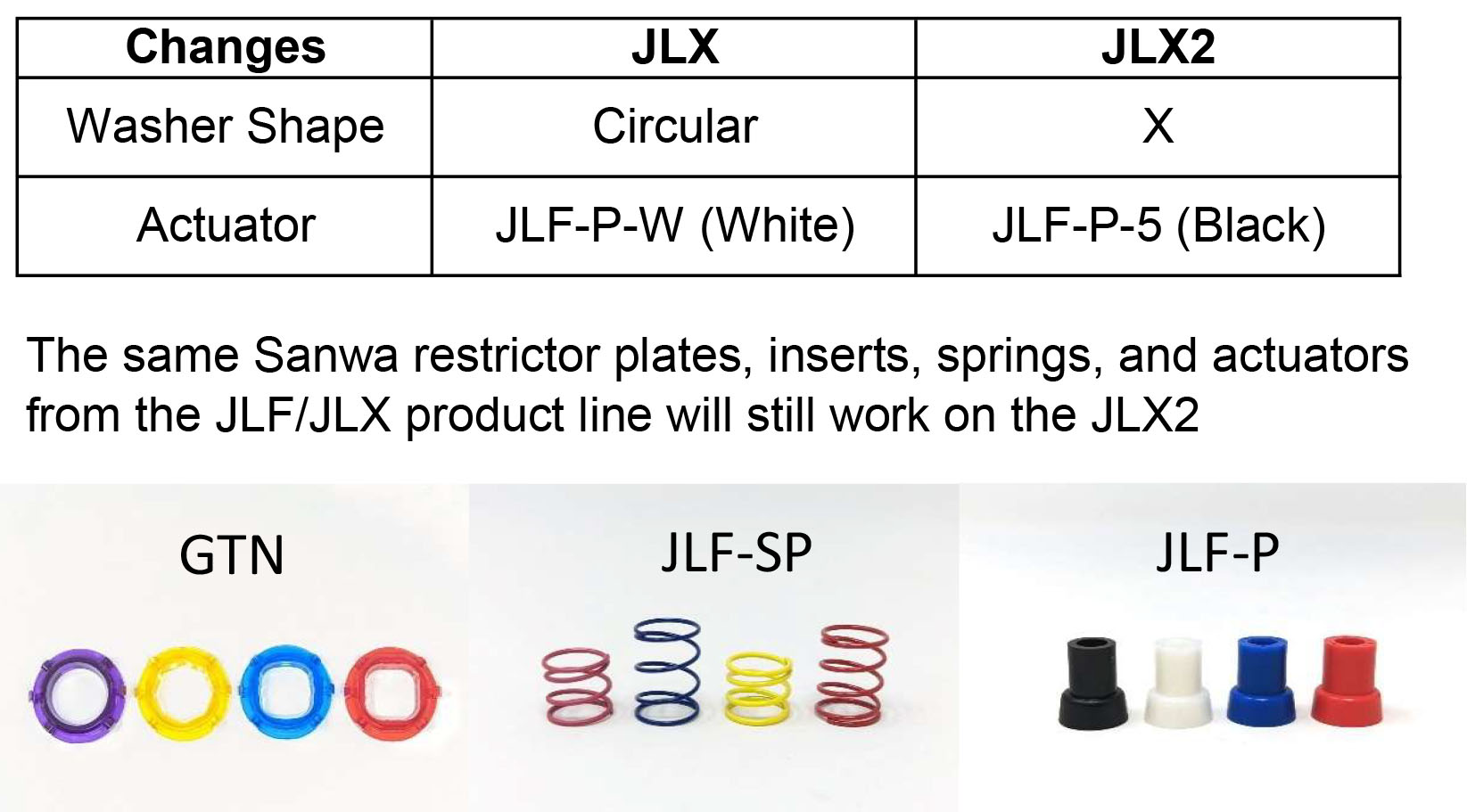

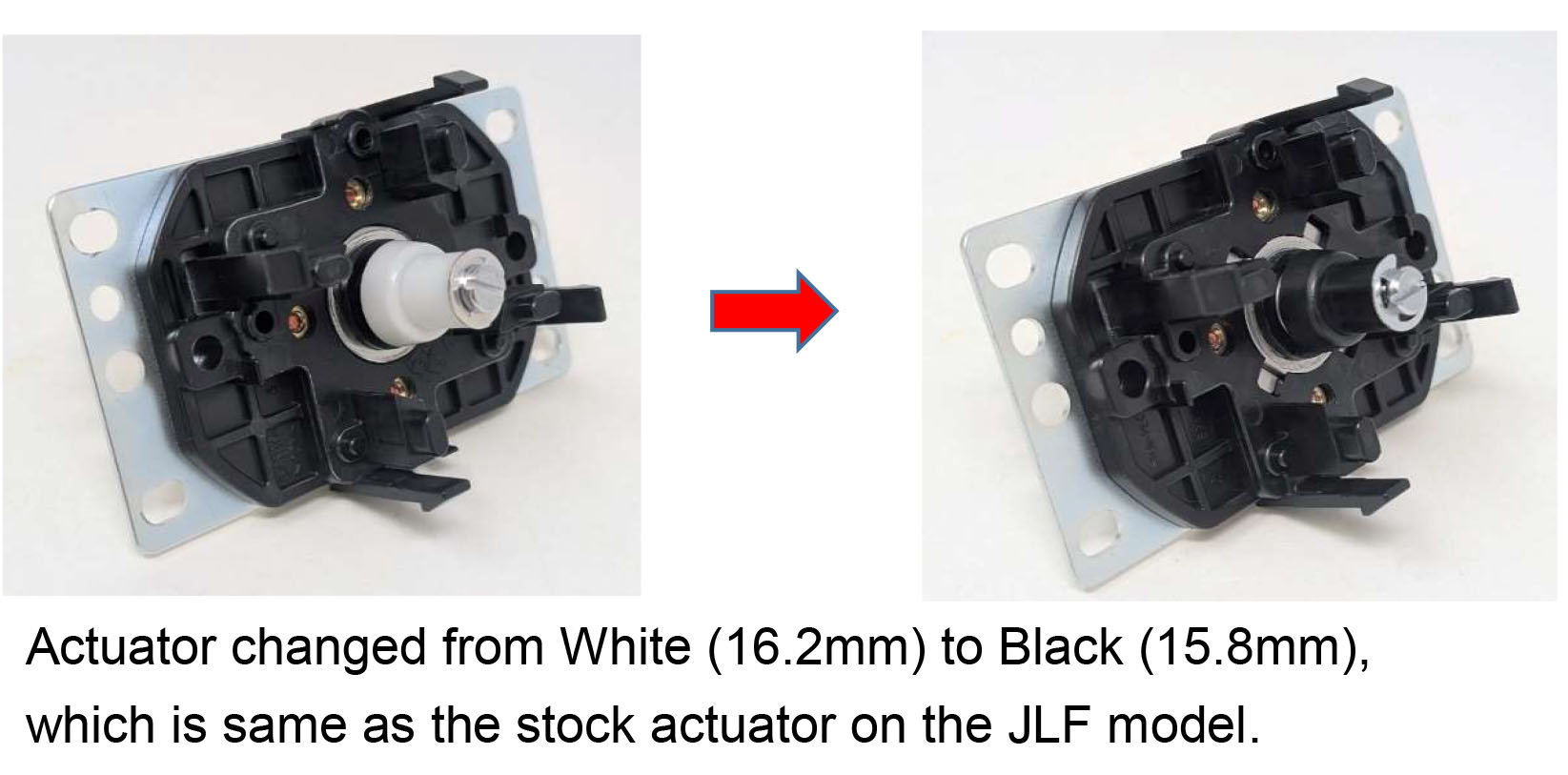

• Actuator changed from White (16.2mm) to Black (15.8mm), which is same as the stock actuator on the JLF model.

Optional Addons:

• 5-Pin Joystick Harness for Sanwa JLF-H
• Sanwa Ball Tops
• Sanwa Bat Tops
