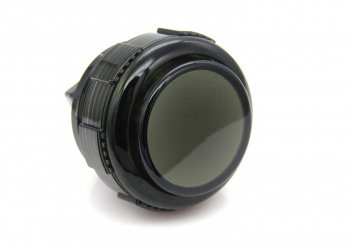

Crown / Samducksa SDB-202C 30mm Cherry Screw In Button - Clear Smoke


SKU SD-SDB-202C-30-CS
Price $5.45
Qty:
  • More Details
  • Reviews

Crown / Samducksa SDB-202C 30mm Cherry Screw In Button - Clear Smoke

The SBD 202 line of buttons by Samducksa (formerly Crown) is an improvement on their 201 line by replacing the Futaba switch with the Cherry MX Silver switch, allowing for higher speed play on both arcade cabinets and fight sticks.

These screw-in pushbuttons can be used on metal control panels, or plastic and wood up to 10mm (3/8in) thick. The Cherry MX Silver switch is preinstalled and has .110" (2.8mm) male spade connectors.

Button Specs
  • Translucent Smoke/Grey plunger with Translucent Smoke/Grey bezel
  • Samducksa Part # SDB-202C-30-CS
  • Built in switch has 2.8mm/.110in connectors
  • Screw-in to 30mm diameter holes, max 10mm panel thickness
Switch Specs
  • Cherry MX Silver
  • Operating Force: 45g
  • Actuation Point: 1.2mm
  • Total Travel: 3.4mm
  • Silent (no audible click like a microswitch)
  • Linear (same pressure all the way down, unlike the extra resistance to engage a microswitch)
Options
