CGA/EGA/YUV/RGB to VGA Video Converter Board

Easily use an LCD monitor with your arcade game by converting the PCB video format to standard VGA. Converts CGA, EGA, YUV, or RGB to VGA using the standard Arcade 5-pin RGB connector, VGA connector, RCA connectors, or bare wires.

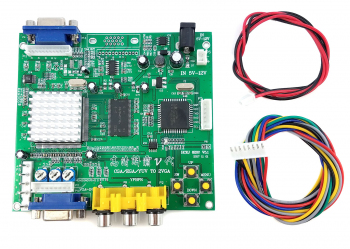

Note: Current board is the Gonbes GBS-8200 instead of the HCKJ 8200 shown in the photo. Layout and functionality is the same.

Contents:

• Converter Board
• 2-pin power cable (or use the barrel connector)
• 8-pin (6 wire) cable for RGB or VGA input
• Printed sheet showing all connections (same as image on this page)

Features:

• Supports CGA / EGA / VGA / YCbCr / YPbPr signal inputs
• Input Options: RGBS 5 pin, RGBHV 8 pin, VGA 15 pin, Component RGB 3 RCA
• Output Connection: VGA 15 pin standard connector, VGA 12 pin for direct wiring
• Supports VGA Output : VGA (640x480), SVGA (800x600), XGA (1024x768), HDTV (1360x768)
• Input Signal Auto Scan: CGA (14.5-16.5KHz) / EGA (23.5-25.5KHz) / VGA (30.5-32.5KHz)
• Input Signal Auto Scan YCbCr / YPbPr: (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p)
• English and Chinese On Screen Display menu
• Supports Output Resolution control, Position control & Zoom control
• Digital 24-bit A/D converter for true 16.7-million color conversion
• Supports all VGA monitors (CRT, LCD, PDP, etc)
