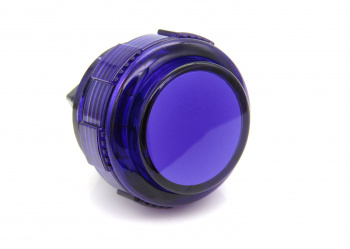

Crown / Samducksa SDB-202C 30mm Cherry Screw In Button - Clear Violet
$3.95
167 In stock
SKU
SD-SDB-202C-30-CV
Clear Violet Screw-in Samducksa (Crown) button for 30mm holes in control panels up to 10mm thick. Includes built-in microswitch with .110" connections.
The SBD 202 line of buttons by Samducksa (formerly Crown) is an improvement on their 201 line by replacing the Futaba switch with the Cherry MX Silver switch, allowing for higher speed play on both arcade cabinets and fight sticks.
These screw-in pushbuttons can be used on metal control panels, or plastic and wood up to 10mm (3/8in) thick. The Cherry MX Silver switch is preinstalled and has .110" (2.8mm) male spade connectors.
Button Specs
These screw-in pushbuttons can be used on metal control panels, or plastic and wood up to 10mm (3/8in) thick. The Cherry MX Silver switch is preinstalled and has .110" (2.8mm) male spade connectors.
Button Specs
- Translucent Violet plunger with Translucent Violet bezel
- Samducksa Part # SD-SDB-202C-30-CV
- Built in switch has 2.8mm/.110in connectors
- Screw-in to 30mm diameter holes, max 10mm panel thickness
- Cherry MX Silver
- Operating Force: 45g
- Actuation Point: 1.2mm
- Total Travel: 3.4mm
- Silent (no audible click like a microswitch)
- Linear (same pressure all the way down, unlike the extra resistance to engage a microswitch)
| Country of Origin | South Korea |
|---|---|
| Manufacturer | Samducksa (Crown) |
| Manufacturer Part | SD-SDB-202C-30-CV |
| Color | Purple |
